Northeast commercial access control
Hartmann I/O, Elevator, Aperio & Deployment
Integration engineering, controller and software setup, server or embedded deployment, testing and long-term service.
Extend access control without losing system accountability
Elevator relays, monitored inputs, wireless locks and third-party integrations can reduce separate operator workflows, but every interface needs a documented owner, supported version, failure mode and acceptance test. We design and commission the field hardware and the matching software behavior.
- Elevator floor authorization and cab/fire-service coordination
- Alarm, HVAC or building-automation inputs and outputs
- ASSA ABLOY Aperio wireless lock and hub integration
- Video, LDAP/directory and DSC intrusion integration where supported
- HC Atom, on-site, cloud or dealer-hosted deployment planning
Integration and deployment families

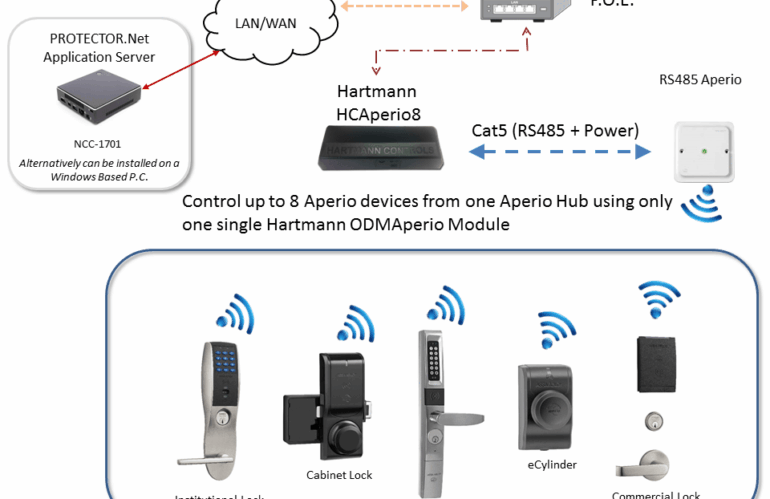

HC-Aperio8
Hartmann publishes support for up to eight Aperio locking devices through one to four hubs per HC-Aperio8 controller. We validate lock, hub, firmware and platform compatibility and perform door-by-door testing.
Elevator control
PRS elevator arrangements can scale by eight-floor modules and support substantial floor counts. Cabling, traveling cable, relay interface, fire recall and elevator-contractor responsibilities must be defined.
Configurable I/O
PRS-IO starters and expanders add monitored inputs or relay outputs for auxiliary alarms and control. ACE scripts or actions are documented so future service teams understand the cause-and-effect logic.
Embedded HC Atom
The Linux-based embedded option can reduce server infrastructure for smaller deployments. We confirm current capacity, release support, backup, remote-service and replacement strategy before selection.
On-site server
Local deployment can support enterprise identity, database and integration requirements. The project must assign operating-system, SQL, backup, antivirus, certificate and patch responsibilities.
Hosted deployment
Cloud or dealer-hosted models can simplify local infrastructure but make internet, account ownership, support entitlement and service continuity part of the design.
Acceptance testing is part of the installation
| Interface | Tests we define |
|---|---|
| Aperio | Credential grant/deny, door state, low battery, hub/network interruption, buffered events and recovery. |
| Elevator | Authorized floors, denied floors, schedules, cab selection, emergency/fire behavior and relay labeling. |
| Intrusion/video | Event mapping, time synchronization, operator acknowledgment, video call-up and failure notification. |
| Directory/mobile | Provisioning, role limits, revocation, lost device, duplicate identity and audit history. |
Official architecture resources
Odyssey deployment optionsAperio and controller architectureHartmann integrations
Plan an installed and supported system
Boston High Tech can review the openings, existing equipment, network, software, credential workflow and integration requirements before recommending a current configuration for Massachusetts, New York and New Jersey.
