Northeast access-control installation and field service
Hartmann Controls Installer for MA, NY & NJ
Certified Hartmann installation, Odyssey and PROTECTOR.Net configuration, repairs, maintenance and expansion for commercial facilities throughout the Northeast.
Start with the doors and the existing infrastructure
Many Northeast access-control projects are retrofits inside occupied offices, residential buildings, schools, warehouses and mixed-use properties. Before proposing a Hartmann panel, Boston High Tech records the lock type, frame condition, reader location, request-to-exit method, door contact, available pathways, power and network conditions at every opening.
That field evidence determines whether a distributed PoE controller, a centrally located PRS panel or a phased combination is the practical choice. It also exposes work that must be coordinated with a locksmith, electrician, fire-alarm contractor, elevator company or the client’s IT team before installation begins.
- New Hartmann systems and additions to supported installations
- Controller, reader, lock and field-wiring troubleshooting
- Odyssey or PROTECTOR.Net server and database configuration
- Credential migration, operator instruction and closeout documentation
Choose the Hartmann layer you need to understand
The following guides separate the management software, door hardware and specialized integrations so property teams can compare the pieces without mistaking a product list for a finished system.

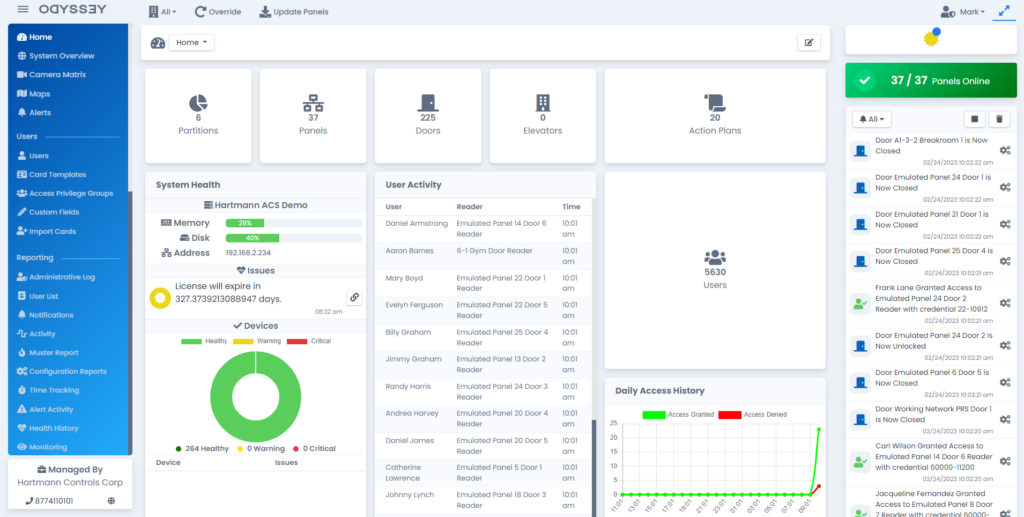

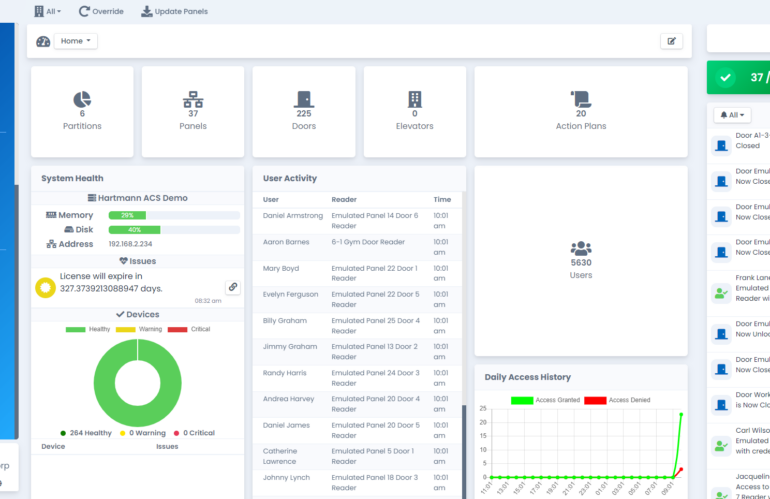

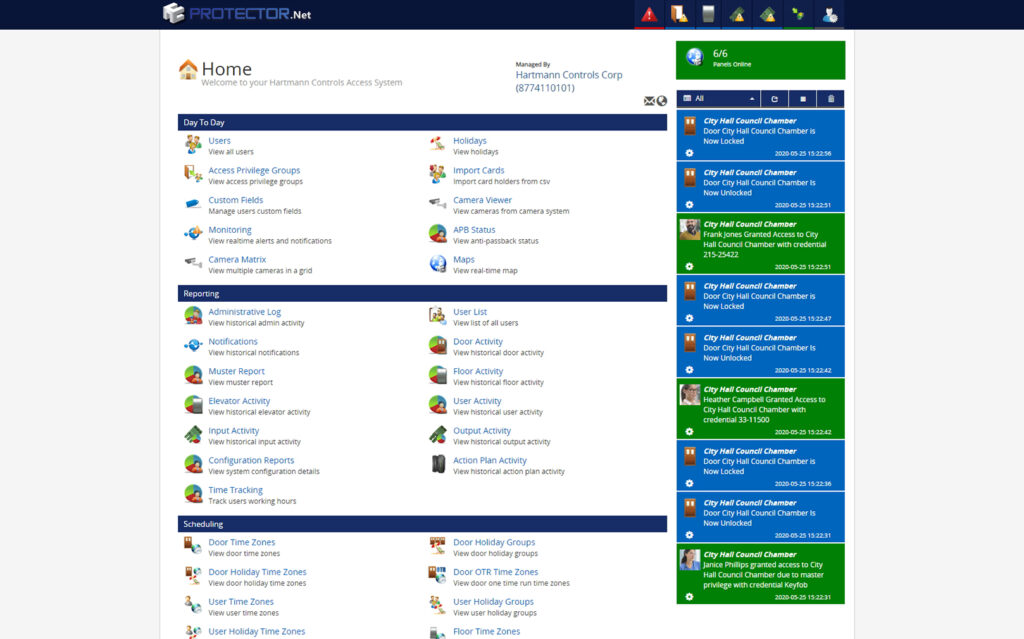

Odyssey and PROTECTOR.Net
Review administration, hosting, database, roles, maps, mobile tools, ACE automation, backups and our software-installation responsibilities.

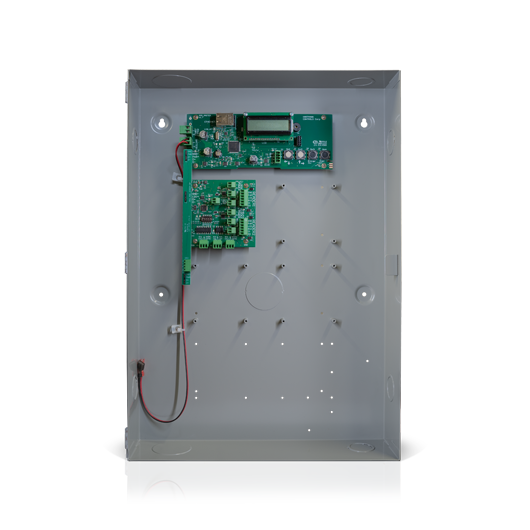

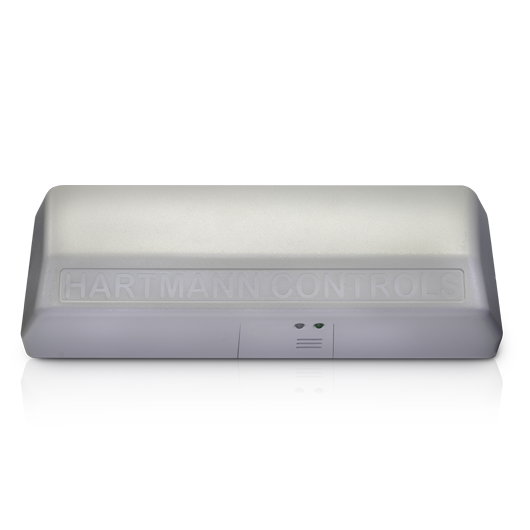

PoE and PRS controller families
Compare above-door PoE architecture with traditional PRS panels, expanders and the field conditions that influence each approach.

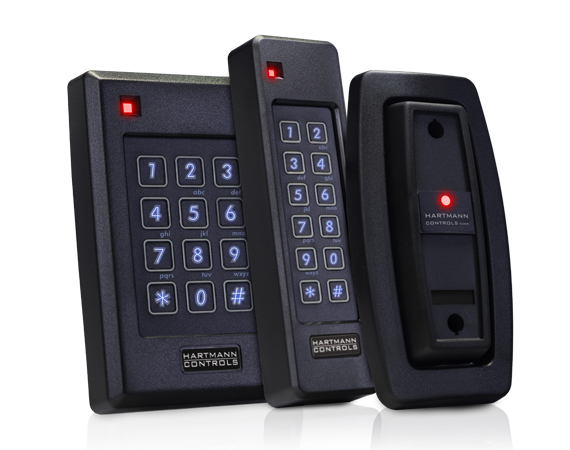

Readers and credential migration
Plan proximity, Bluetooth, NFC, Wiegand or OSDP readers and move cardholders without disrupting normal building access.

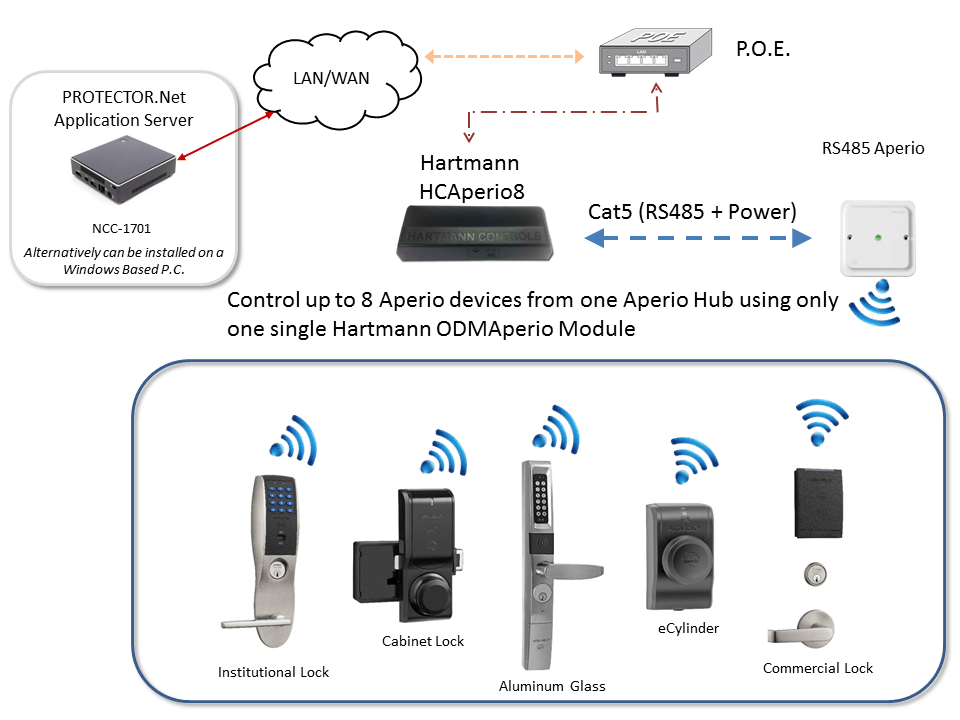

Elevators, I/O and Aperio
Define floor control, auxiliary points, wireless lock hubs, enclosure requirements and deployment responsibilities before procurement.
Odyssey or PROTECTOR.Net?
| Planning question | Odyssey discussion | PROTECTOR.Net discussion |
|---|---|---|
| Operating scale | Designed for large door and device populations with enterprise search, filtering and live-status workflows. | Web-oriented administration suitable for many commercial deployments and supported hosted or local arrangements. |
| Administration | Customizable HTML5 screens, advanced permissions, photo badging and ACE server-side automation. | Active maps, partitions, LDAP, crisis levels, notification filtering, mobile tools and event/action configuration. |
| Our software work | Server and SQL planning, installation, controller enrollment, role design, dashboards, automation, backup and training. | Application deployment, database protection, door and credential setup, maps, alerts, integrations, upgrade planning and support. |
The software choice is confirmed against current Hartmann licensing, controller firmware, integration support and the owner’s IT standards. We do not assume that an existing database or panel can be upgraded until its exact release and backup condition are verified.
How a Northeast Hartmann project moves from survey to support
Field survey
Document every controlled opening, panel, server, credential format and integration dependency.
Design and staging
Select supported components, prepare addressing and software, and build a door-by-door test plan.
Occupied-site installation
Coordinate access, protect business operations, label work and control the cutover sequence.
Acceptance and service
Exercise normal, alarm and outage behavior; train administrators and establish maintenance records.
Service for an existing Hartmann system
A service visit begins by separating the symptom from the cause. An intermittent door may involve the reader, credential format, door contact, lock load, power supply, controller communications, network path, software service or database—not necessarily a failed panel.
We review event history, board and power status, field voltage, network health and software communications before replacing equipment. Corrective work is followed by credential, REX, held/forced alarm, offline and recovery tests, with updated records for the affected opening.
Certification privacy: Boston High Tech is a certified Hartmann Controls installer. Certificate numbers and individual certificate-holder records remain private.
Manufacturer-controlled resources
Current manuals, software, release information and dealer material remain on Hartmann-owned systems. Boston High Tech does not host firmware files locally.
Hartmann product catalogOfficial software downloadsDealer portal
Plan a serviceable Hartmann installation
Share the site address, approximate door count, current platform and the operational problem. We can determine whether the next step should be a survey, repair visit, software review or complete design.
